CablePRO - DWC HDPE CABLE DUCT PIPE
Introduction

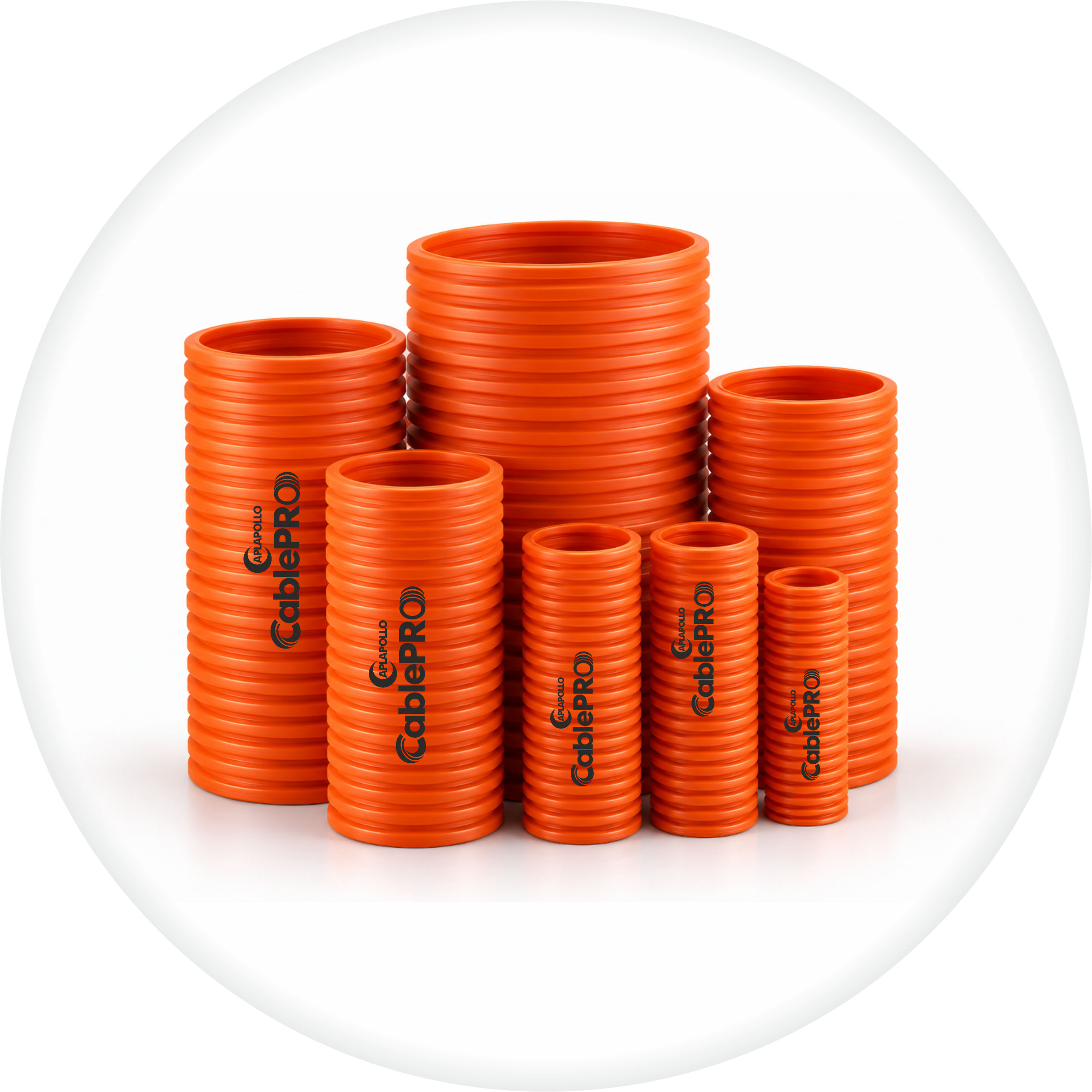

APL APOLLO CablePRO is a Double-Wall Corrugated HDPE Cable Duct Pipe designed for reliable underground protection and ducting of signalling, telecommunication, electrical and power cables.
Its robust corrugated outer wall provides excellent diametrical stiffness and resistance to external loads, while the smooth inner wall facilitates easy cable insertion and pulling.
APL APOLLO CablePRO is designed as an underground cable ducting solution for protecting critical cable networks.
The double-wall construction combines:
- Corrugated Outer Wall—Provides high diametrical stiffness and resistance to external loads.
Smooth Inner Wall:
- Facilitates easy insertion and pulling of cables.
As a trusted cable pipe manufacturer, APL APOLLO offers CablePRO, which can be installed as a single-layer system or with suitable spacers for multi-layer installation, depending on project requirements. The product is suitable for underground cable-protection applications across infrastructure sectors such as railways, airports, telecommunications, power distribution, solar installations, public infrastructure and other utility networks.
Technical Specifications
APL Apollo CablePRO - DWC HDPE CABLE DUCT PIPE are manufactured as per the standards given below:
- Manufactured in accordance with IS 16205 – Part 24 (Earlier IS 14930 – Part 2).
- Compression Class: Type 450N.
- Standard colors: Black / Black, Orange / Orange.
WHY SHOULD YOU CHOOSE APL APOLLO
CablePRO - DWC HDPE CABLE DUCT PIPE?
Lightweight and easy to handle
Telescopic transportation possible
Maintains pipe radius when bent
Easy transportation and installation
Smooth inner wall for easy cable insertion
Moderate flexibility accommodates soil settlement
Capable of taking heavy earth loads
For Underground Drainage and Sewerage Pipes specification, Click Here
Call to place your order via phone
Toll
Free
No. : 1800 121 3737
Or
Request a callback
Call to place your order via phone
Toll
Free
No. :
1800 121 3737
Or
request a callback
Applications
APL APOLLO CablePRO is suitable for a wide range of underground cable-protection applications, including: APL APOLLO CablePRO is suitable for a wide range of underground cable-protection applications, including signalling cable protection for railways and airports, solar power cable protection, and optical fibre cable networks. It is also ideal for power distribution networks, telecommunication networks, home signal applications, electrical cable ducting, and CCTV networks. Its robust double-wall corrugated HDPE construction helps protect critical cable infrastructure across diverse applications.
Frequently Asked Questions
APL APOLLO CablePRO is a double-wall corrugated HDPE cable duct pipe designed for reliable underground protection and ducting of signalling, telecommunication, electrical and power cables.
Excellent load-bearing capacity, chemical inertness, abrasion resistance, anti corrosive properties, and suitability for aggressive climatic conditions. Its corrugated outer profile ensures effective soil bonding and pipe stability, while Its flexible, fatigue-resistant construction accommodates movement and installation requirements while maintaining structural integrity.
CablePRO is suitable for underground cable-protection applications in railways, airports, solar installations, optical fiber networks, power distribution, telecommunications, electrical cable ducting, and CCTV networks.
APL APOLLO CablePRO is available in nominal sizes ranging from 25 mm to 315 mm, with minimum inner diameters varying by pipe size.
Standard length of pipe is 6m.
CablePRO pipes can be joined using snap-fit couplers with rubber rings. The process involves placing the rubber ring on one pipe end, aligning and pushing the coupler over the pipe ends, and securing the connection.
