Introduction

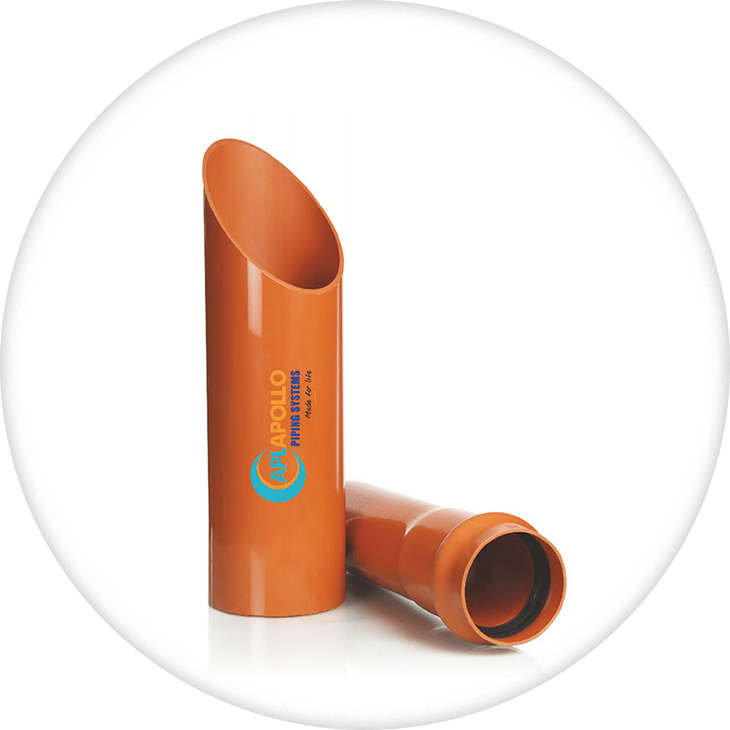

APL APOLLO Non-Pressure Polyvinyl Chloride (PVC-U) Pipes are rigid no-lasticised pipes with good surface sturdiness and tensile resistance. They also come with a high compressive rating and pipe safety factor. With extensive use in underground drainage and sewerage systems, these PVC-U pipes are also manufactured for the conveyance of surface water and potable water. Internal and external discharge piping are also widely used in industrial and civil high buildings.

Good ageing resistance with normal lifetime up to 50 years

Good chemical resistance to acids, alkalis and salts; suitable for sewerage and effluent disposal

Low co-efficient of friction of PVC-U results in efficient flow and less need of maintenance

A combustion-proof material at grade B2 with high oxygen value, which is self-extinguishing

The co-efficient of linear expansion is 0.007 mm/m. Thermal expansion of PVC-U pipe is less than polyolefin by 100% - 130%, low thermal conductivity and elastic modulus, better cold resistance than cast iron sewerage pipe

Solvent cement jointing pipes & fittings that are easy to handle and install

Available Sizes

63 MM to 400 MM

For Underground Drainage and Sewerage Pipes specification, Click Here

Call to place your order via phone

Toll Free No. : 1800 121 3737

Request a callback

Call to place your order via phone

Toll Free No. :
1800 121 3737

request a callback

Applications

APL Apollo Underground Drainage Pipes are used for conveyance of domestic sewage, industrial waste, surface water, and potable water.

Frequently Asked Questions

Underground Drainage System

Job Descriptions

Underground Drainage System

Outside Dia		SN-2/SDR-51	SN-4/SDR-41	SN-8/SDR-34
Inches	mm	SN-2/SDR-51	SN-4/SDR-41	SN-8/SDR-34
2"	63	-	-
2.5"	75	-	-
3"	90	-	-
4"	110	-	-
4.5"	125	-
6"	160
8"	200
10"	250
12"	315
16"	400
