Introduction

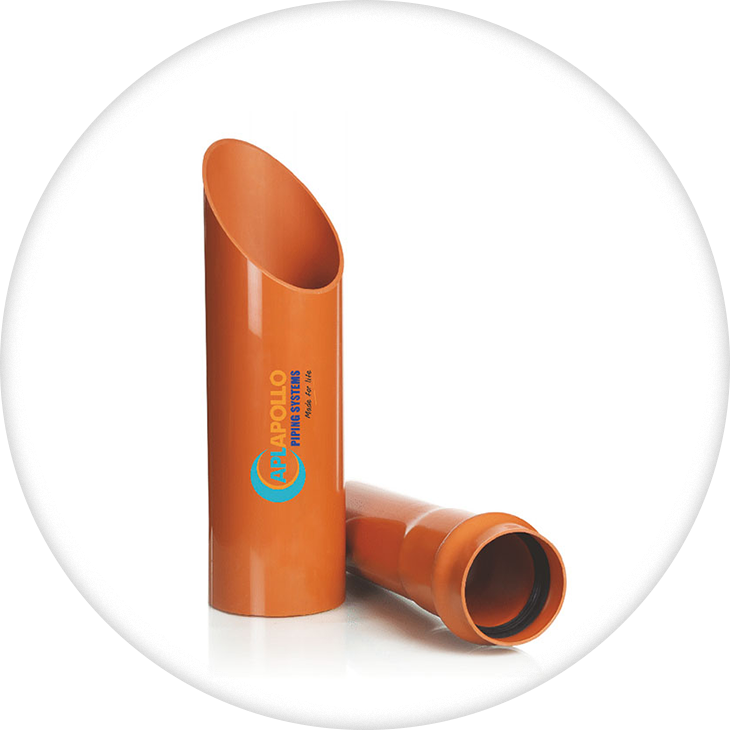

APL APOLLO Non-Pressure Polyvinyl Chloride (PVC-U) Pipes are rigid no-lasticised pipes with good surface sturdiness and tensile resistance. They also come with a high compressive rating and pipe safety factor. With extensive use in underground drainage and sewerage systems, these PVC-U pipes are also manufactured for the conveyance of surface water and potable water. Internal and external discharge piping are also widely used in industrial and civil high buildings.

Good ageing resistance with normal lifetime up to 50 years

Good chemical resistance to acids, alkalis and salts; suitable for sewerage and effluent disposal

Low co-efficient of friction of PVC-U results in efficient flow and less need of maintenance

A combustion-proof material at grade B2 with high oxygen value, which is self-extinguishing

The co-efficient of linear expansion is 0.007 mm/m. Thermal expansion of PVC-U pipe is less than polyolefin by 100% - 130%, low thermal conductivity and elastic modulus, better cold resistance than cast iron sewerage pipe

Solvent cement jointing pipes & fittings that are easy to handle and install

Available Sizes

63 MM to 400 MM

For HDPE Pipes & Coils specification, Click Here

Sizes		PE-63
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11
Inches	PN/DA	PN-2	PN-2.5	PN-3.5	PN-4	PN-5	PN-6	PN-8
1/2"	20MM	-	-	-	-	-	-
3/4"	25 MM	-	-	-	-	-
1"	32 MM	-	-	-	-
1.25"	40 MM	-	-	-
1.50"	50 MM	-	-
2"	63 MM	-	-
2.50"	75 MM
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

Sizes		PE-80
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11	SDR-9	SDR-7.4
	PN/DA	PN-2.5	PN-3.2	PN-4	PN-5	PN-6	PN-8	PN-10	PN-12.5	PN-16
-	16 MM	-	-	-	-	-	-	-
1/2"	20 MM	-	-	-	-	-	-
3/4"	25 MM	-	-	-	-	-
1"	32 MM	-	-	-	-
1.25"	40 MM	-	-	-
1.50"	50 MM	-	-
2"	63 MM	-	-
2.50"	75 MM
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

Sizes		PE-100
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11	SDR-9
	PN/DA	PN-3	PN-4	PN-5	PN-6	PN-8	PN-10	PN-12.5	PN-16
-	16 MM	-	-	-	-	-	-	-
1/2"	20 MM	-	-	-	-	-	-
3/4"	25 MM	-	-	-	-	-
1"	32 MM	-	-	-	-
1.25"	40 MM	-	-	-
1.50"	50 MM	-	-
2"	63 MM	-	-
2.50"	75 MM
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

Sizes		PE-63
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11	SDR-9
	PN/DA	PN-3	PN-4	PN-5	PN-6	PN-8	PN-10	PN-12.5	PN-16
2	63	-
2.50"	75 MM
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

Sizes		PE-80
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11	SDR-9
	PN/DA	PN-3	PN-4	PN-5	PN-6	PN-8	PN-10	PN-12.5	PN-16
2	63	-
2.50"	75 MM	-
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

Sizes		PE-100
Inches	SDR	SDR-41	SDR-33	SDR-26	SDR-21	SDR-17	SDR-13.6	SDR-11	SDR-9
	PN/DA	PN-3	PN-4	PN-5	PN-6	PN-8	PN-10	PN-12.5	PN-16
2	63
2.50"	75 MM
3"	90 MM
4"	110 MM
4.50"	125 MM
5"	140 MM
6"	160 MM
7"	180 MM
8"	200 MM
9"	225 MM
10"	250 MM
11"	280 MM
12"	315 MM

For Sprinkler System specification, Click Here

S.NO.	Description	63 MM	75 MM	90 MM	110 MM	125 MM
1	HDPE Pipe duly coupled IS:14151 (Class-1) 6 mtr including Rubber Gasket & Latch Clamp	-
2	HDPE Pipe duly coupled IS:1415I (Class-II) 6 mtr. including Rubber Gasket & Latch Clamp
3	HDPE Pipe duly coupled 3 mtr. (Class-l)
4	HDPE Plain Pipe IS: 14151 (Class-l)	-
5	HDPE Plain Pipe IS: 14151 (Class-ll)
6	Bend With Coupler
7	Tee With Coupler
8	PCN (Pump Connecting Nipple) (Long)					-
9	PCN (Pump Connecting Nipple) (Short)
10	End Cap with Clamp
11	Sprinkler Adaptor with Foot Batton					-
12	Sprinkler Adaptor with Foot Batton (Heavy)			-	-	-
13	APL APOLLO Brand- Medium Class Riser Pipe
14	Sprinkler Nozzel
15	Extra Rubber Ring
16	Extra Clamp
17	Reducer with Coupler 75 mm x 63 mm		90X75 MM		110X90 MM

S.NO.	Description	63 MM	75 MM	110 MM	125 MM
1	HDPE Pipe duly coupled IS:14151 (Class-1) 6 mtr. including Rubber Gasket & Latch Clamp	-			-
2	HDPE Pipe duly coupled IS: 1415I (Class-II) 6 mtr. Including Rubber Gasket & Latch Clamp				-
3	HDPE Pipe duly coupled 3 mtr.				-
4	Bend with Coupler				-
5	Tee with Coupler				-
6	PCN (Pump Connecting Nipple) (Long)				-
7	PCN (Pump Connecting Nipple) (Short)				-
8	End Cap				-
9	Sprinkler Adaptor with Foot Batton				-
10	APL APOLLO Brand- Medium Class Riser Pipe				-
11	Sprinkler Nozzel				-
12	Extra Rubber Ring				-
13	Reducer with Coupler 75 mm x 63 mm		90X75 MM	110X90 MM

S.NO.	Description	63 MM	75 MM	90 MM	110 MM	125 MM
1	Coupler (Head)	-				-
2	Coupler (Tail)	-				-
3	End Cap (Plain)	-				-
4	Bend (Plain)	-				-
5	Tee (Plain)	-				-
6	Reducer 110 mm x 90 mm (Plain)		-	-	-
7	Reducer 90 mm x 75 mm (Pain)		-	-	-	-

Call to place your order via phone

Toll Free No. : 1800 121 3737

Request a callback

Call to place your order via phone

Toll Free No. :
1800 121 3737

request a callback

Applications

APL Apollo Underground Drainage Pipes are used for conveyance of domestic sewage, industrial waste, surface water, and potable water.

Frequently Asked Questions

What type of fitting can be used for underground piping?

APL Apollo’s underground drainage system is the ultimate solution for all underground piping needs. With a high compressive rating and pipe safety factor, our underground drainage system is ideal for major types of fluid transportation.

How do you connect underground pipes?

The APL Apollo solvent cement is the most preferred choice for connecting underground pipes. It creates a perfect underground drainage system, which is easy to handle and install. This solvent makes the drainage system even more sturdy and durable, which can be used for a long time.

Is PVC pipe good for underground?

PVC is one of the best materials for underground pipes. It provides a strong and sturdy surface and high tensile resistance, making them apt for underground transportation needs.

What is the strongest drain pipe?

APL Apollo underground drainage system has the best-quality drain pipes that are strong, durable and robust. Made from a combustion-proof material under stringent quality, APL Apollo drain pipes provide good chemical resistance to acids, alkalis and salts, which makes them efficient for use in sewage disposal.
